ALP068-R3

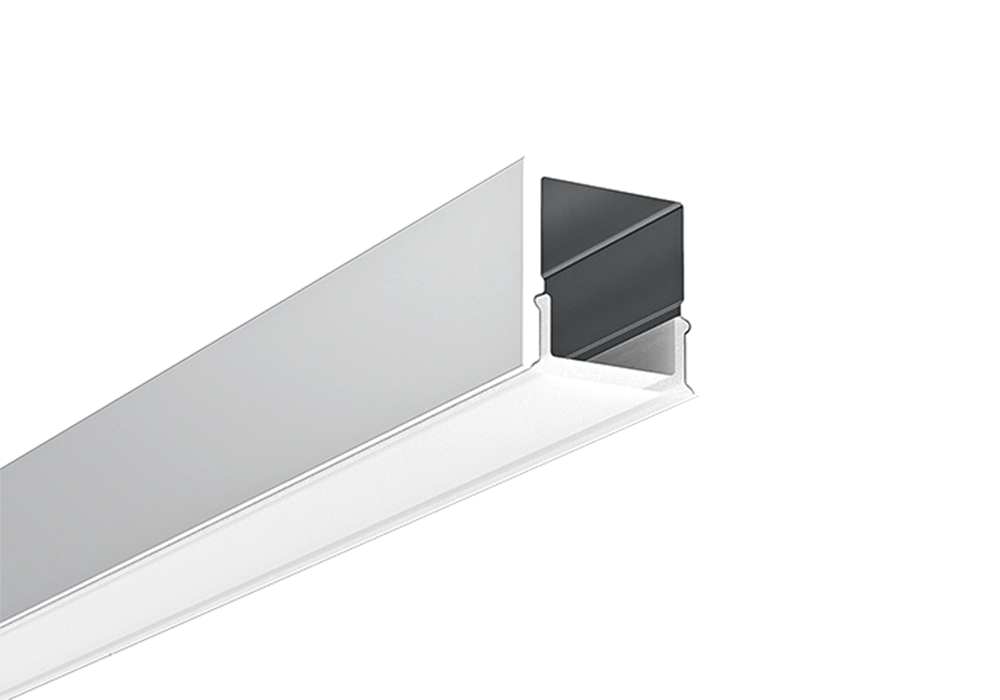

Mini Size Surface Mounted Plasterboard LED Channel

The Plasterboard LED Channel without flange can be mounted on the drywall or plasterboard wall or ceiling

Basic parameters

Model:
ALP068-R3
Material:
Extruded Aluminum{6063-T5)
Size:
13.1×13.7mm

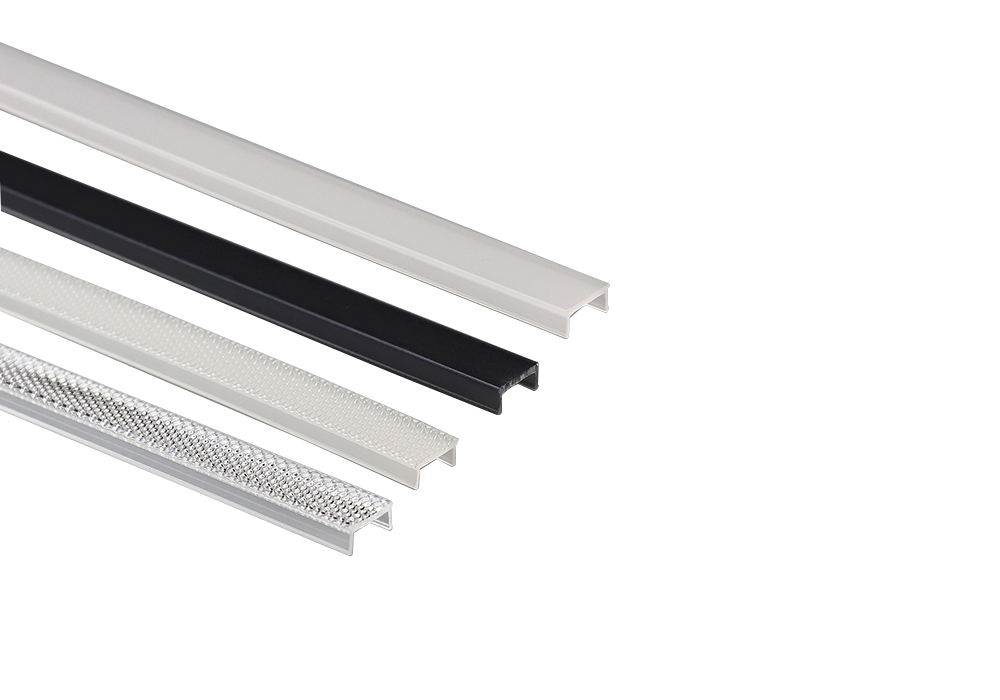

Diffuser:
PC diffused cover/Black PC frosted cover/PC opal prismatic cover/PC clear prismatic cover
Installation:
Surface
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Max Power: 12W/m
Max LED Strip Width: 10mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
