ALP027

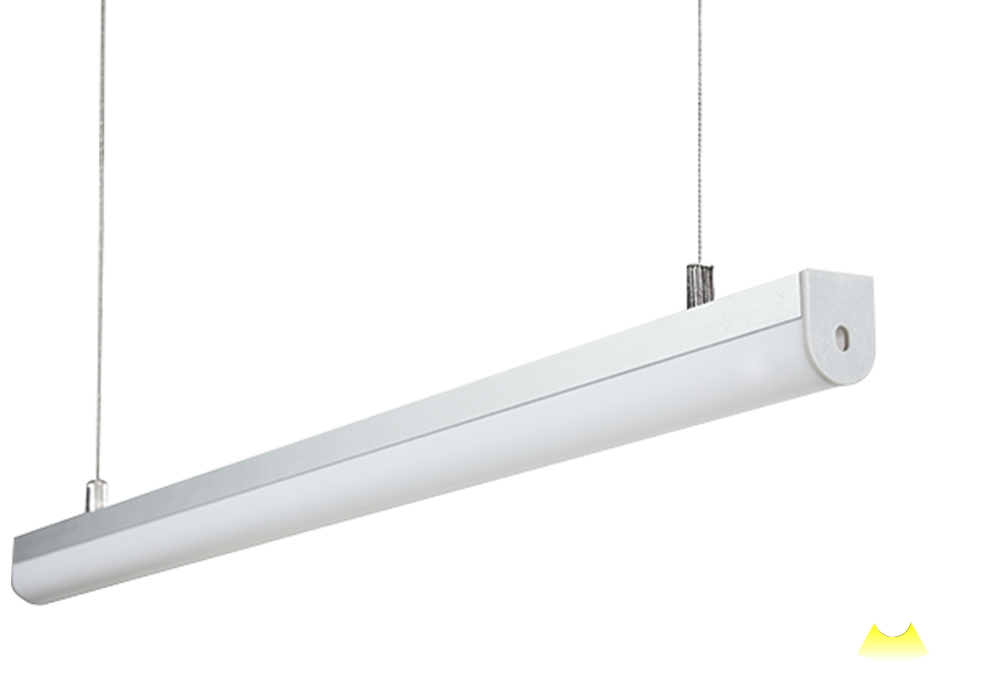

Hanging LED Aluminum Profile for Office Lighting with Half Circle Cover

LED Aluminum Profile for Office Lighting with pendant or surface mounting

Basic parameters

Model:
ALP027
Material:
Extruded Aluminum{6063-T5)
Size:
20.3×27mm

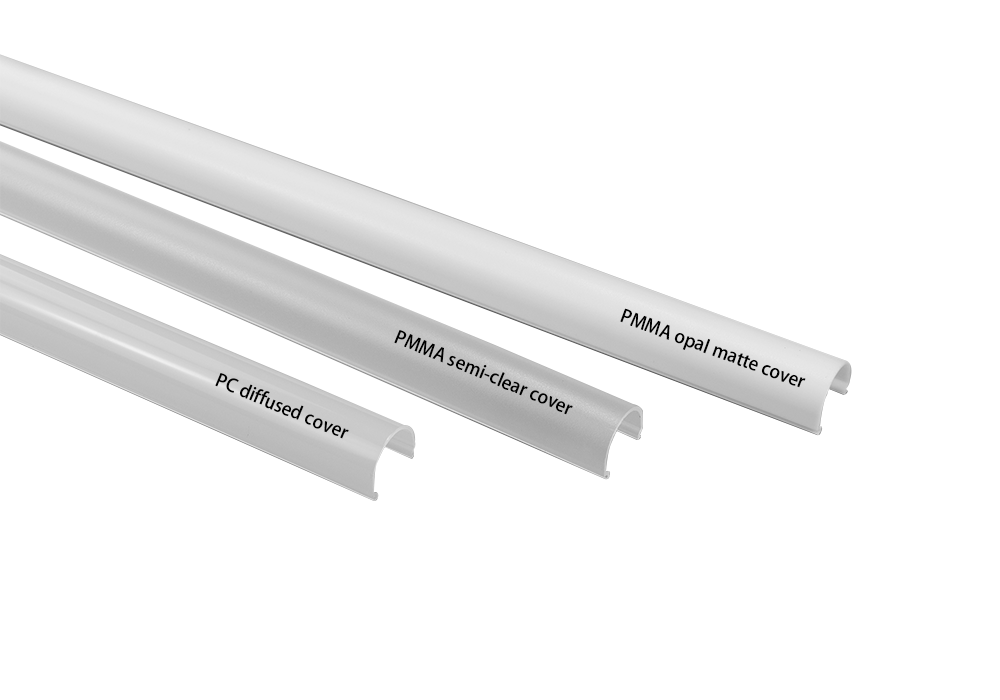

Diffuser:
PMMA opal matte cover / PMMA semi-clear cover / PC diffused cover
Installation:
Surface / Pendant
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Colour: 2700K/3000K/4000K
Max Power: 20W/m
Max LED Strip Width: 15mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
