ALP087

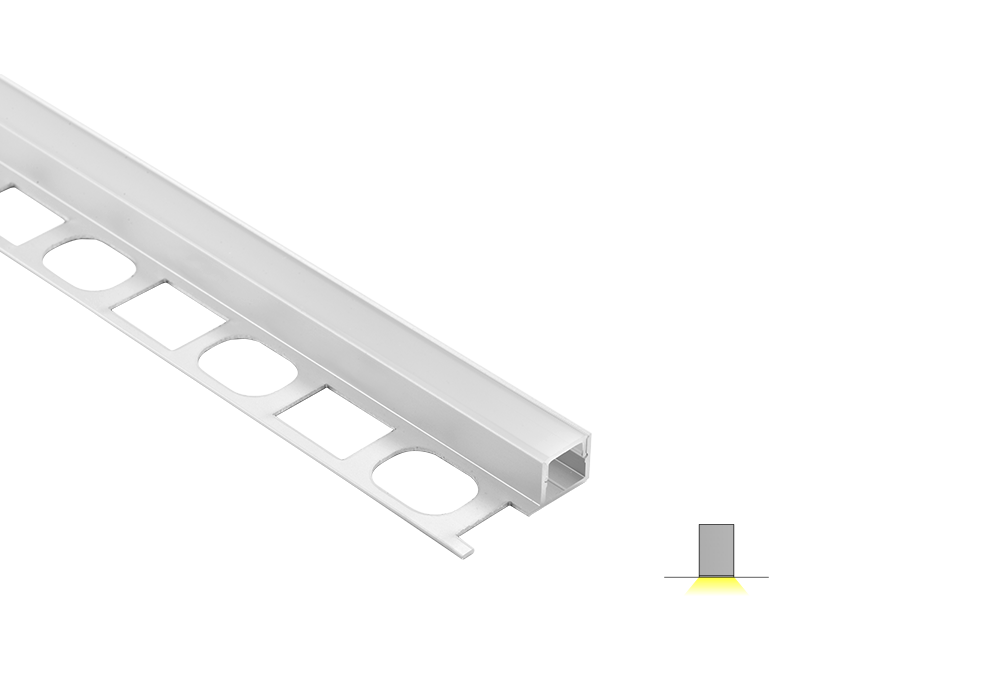

10MM Recessed Tile Edge LED Profiles With Flange

The Tile Edge LED Profiles with flange are designed to be flushed mounted with 10mm marbles and add lighting in kitchens and bathrooms.

Basic parameters

Model:
ALP087
Material:
Extruded Aluminum{6063-T5)
Size:
33.1×11mm
Diffuser:

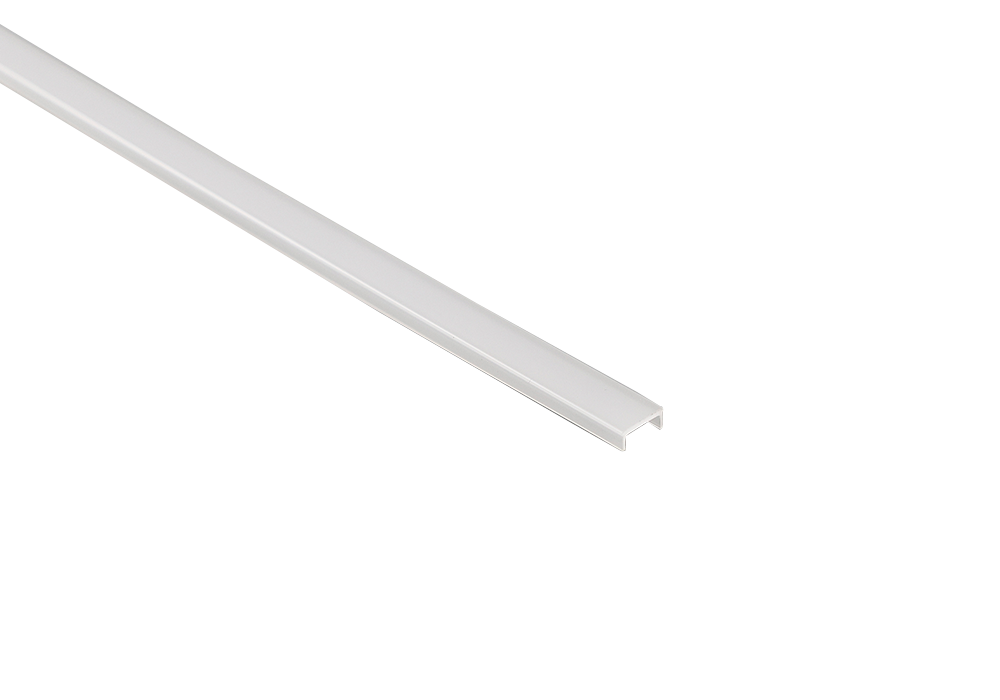

PC diffused cover
Installation:
Recessed
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Max Power: 12W/m
Max LED Strip Width: 10mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
