ALP068-R2

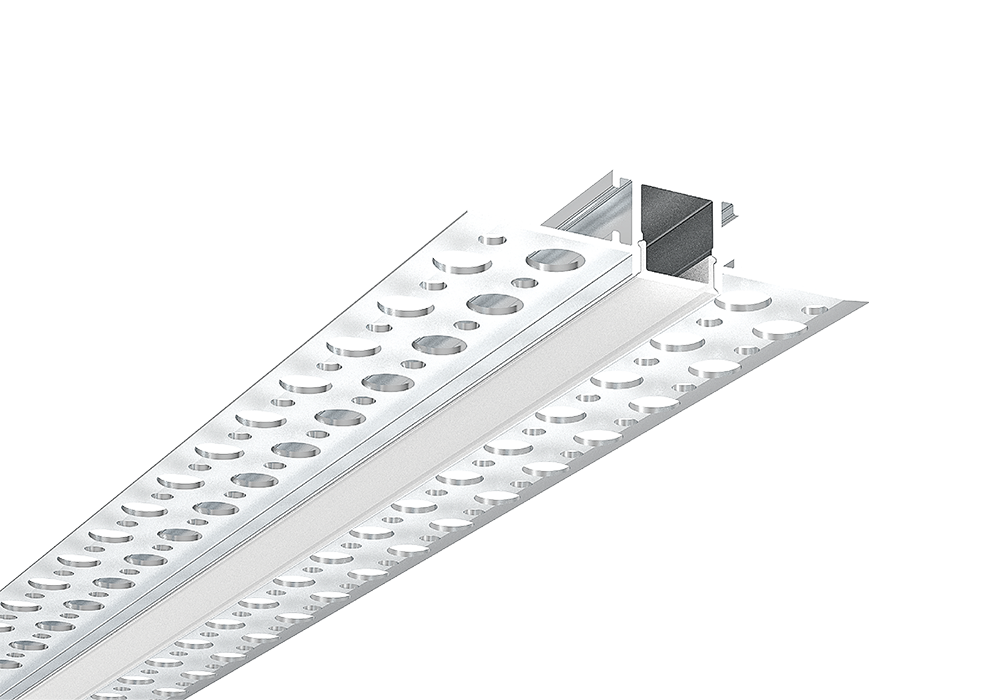

LED Plaster-In Profile Housing For 12.5mm Drywall

Aluminum LED Extrusion Profile with PC opal diffused cover for 12.5mm drywall

Basic parameters

Model:
ALP068-R2
Material:
Extruded Aluminum{6063-T5)
Size:
58.7×14mm
Diffuser:

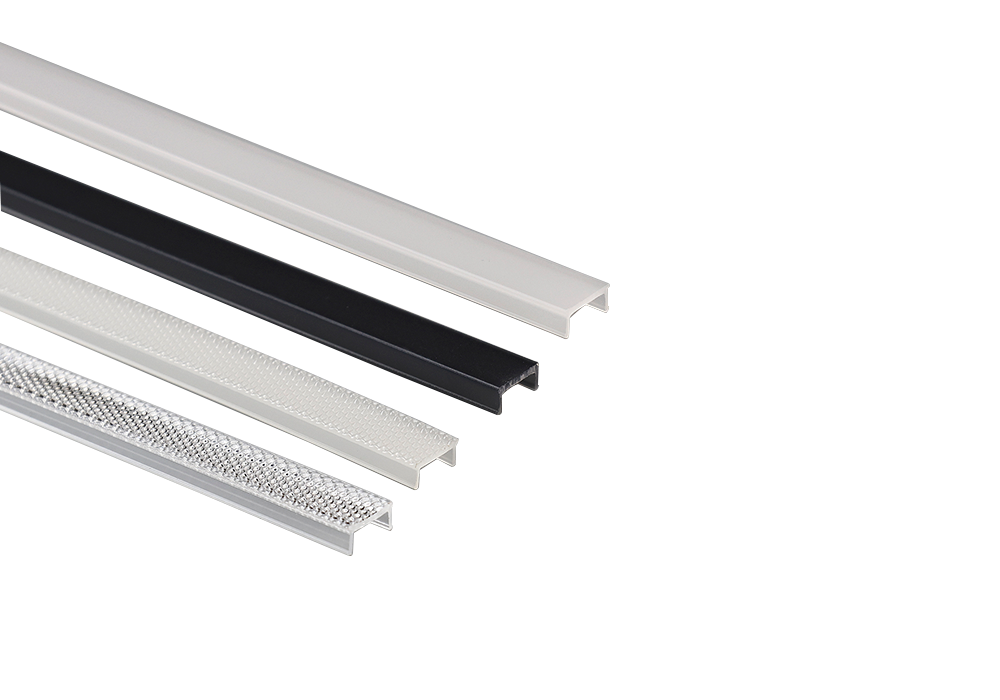

PC diffused cover/Black PC frosted cover/PC opal prismatic cover/PC clear prismatic cover
Installation:
Recessed
Finish:
Silver / Black anodized , Powder coated white / black or other colors
Compatible:
12.5mm drywall

Optical Parameter

Max Power: 12W/m
Max LED Strip Width: 10mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
