ALP070-R

External Corner Trimless LED Drywall Profile

Trimless LED Drywall Profile for external corner installation

Basic parameters

Model:
ALP070-R
Material:
Extruded Aluminum{6063-T5)
Size:
50.6×22.8mm
Diffuser:

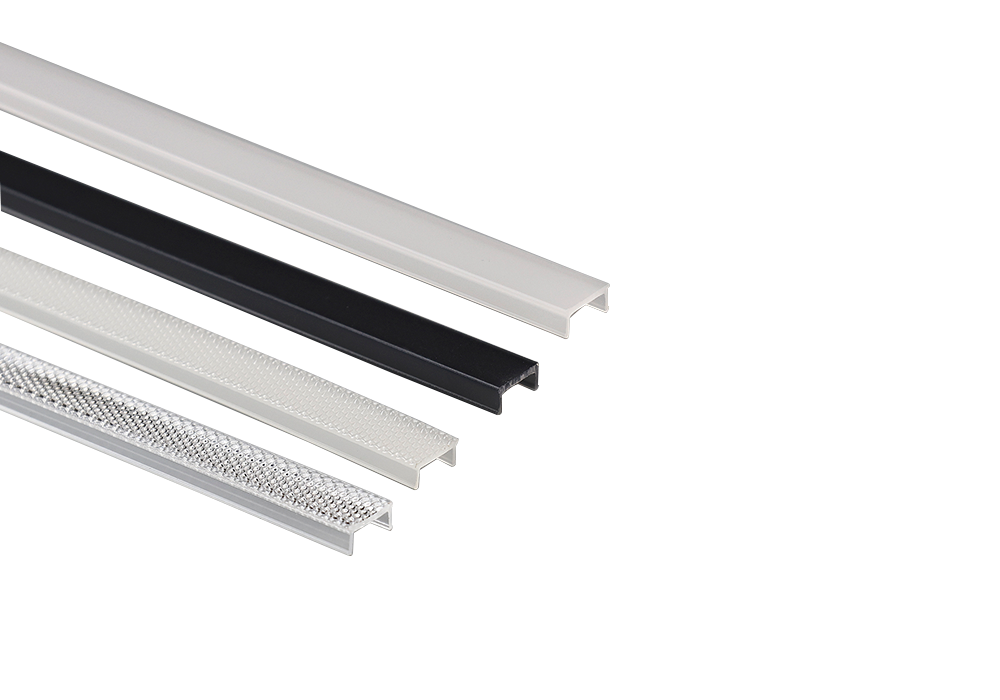

PC diffused cover/Black PC frosted cover/PC opal prismatic cover/PC clear prismatic cover
Installation:
Recessed
Finish:
Silver / Black anodized , Powder coated white / black or other colors
Compatible:
12.5mm drywall

Optical Parameter

Max Power: 12W/m
Max LED Strip Width: 10mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
