ALP068-R

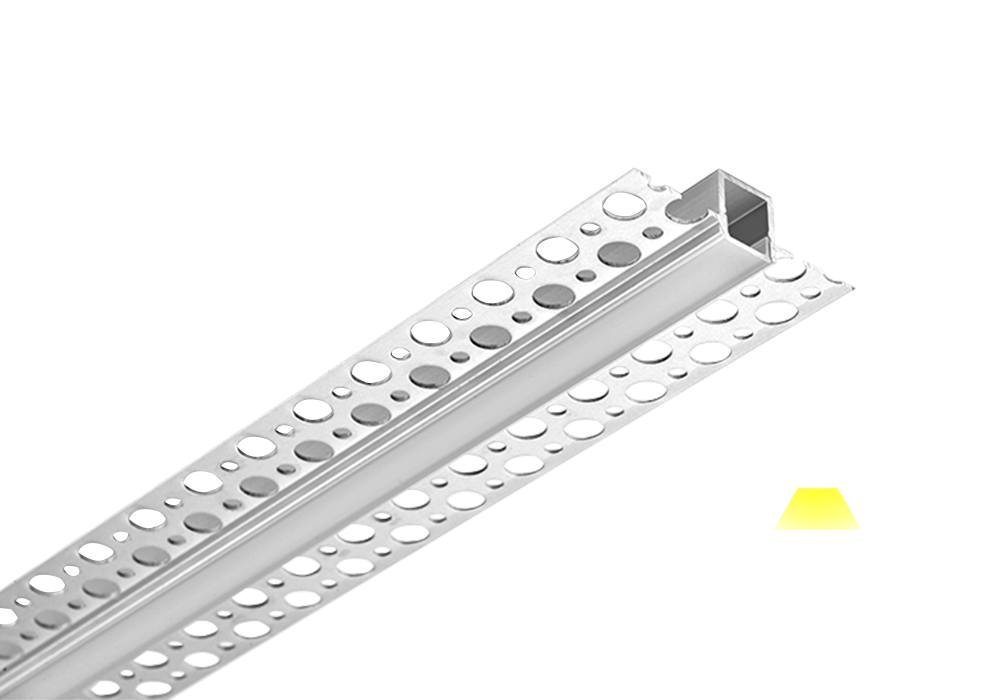

LED Drywall Channel For Trimless Recessed Lighting

LED Drywall Channel mounted on drywall and used for Trimless Recessed Lighting in any room

Basic parameters

Model:
ALP068-R
Material:
Extruded Aluminum{6063-T5)
Size:
53×14mm
Diffuser:

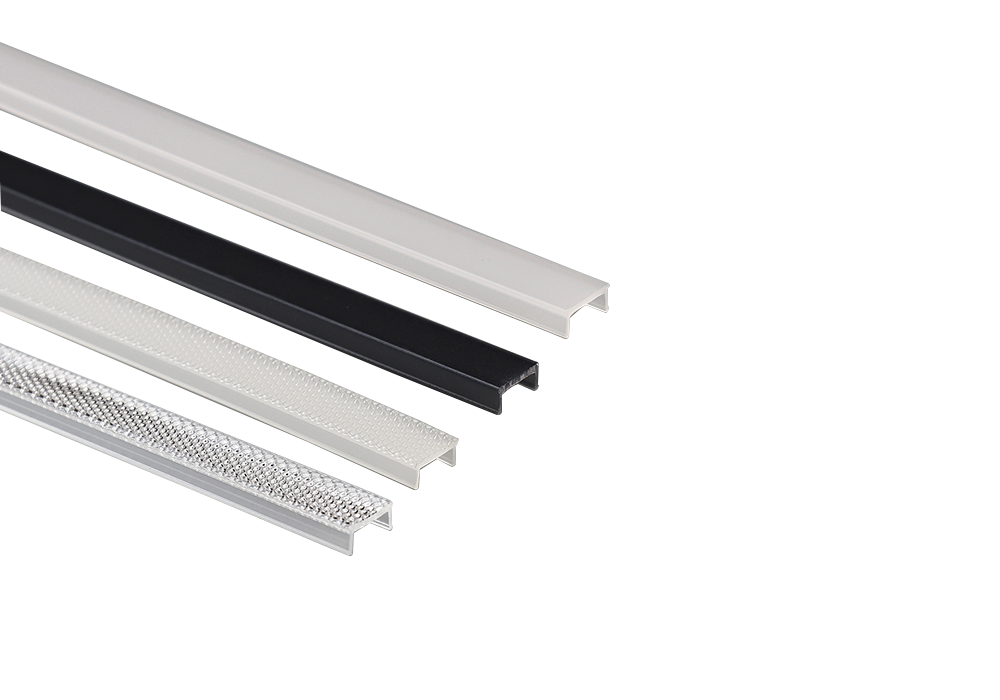

PC diffused cover / Black PC frosted cover PC opal prismatic cover / PC clear prismatic cover
Installation:
Recessed
Finish:
Silver / Black anodized , Powder coated white / black or other colors
Compatible:
12.5mm drywall

Optical Parameter

Max Power: 12W/m
Max LED Strip Width: 10mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
