ALP177

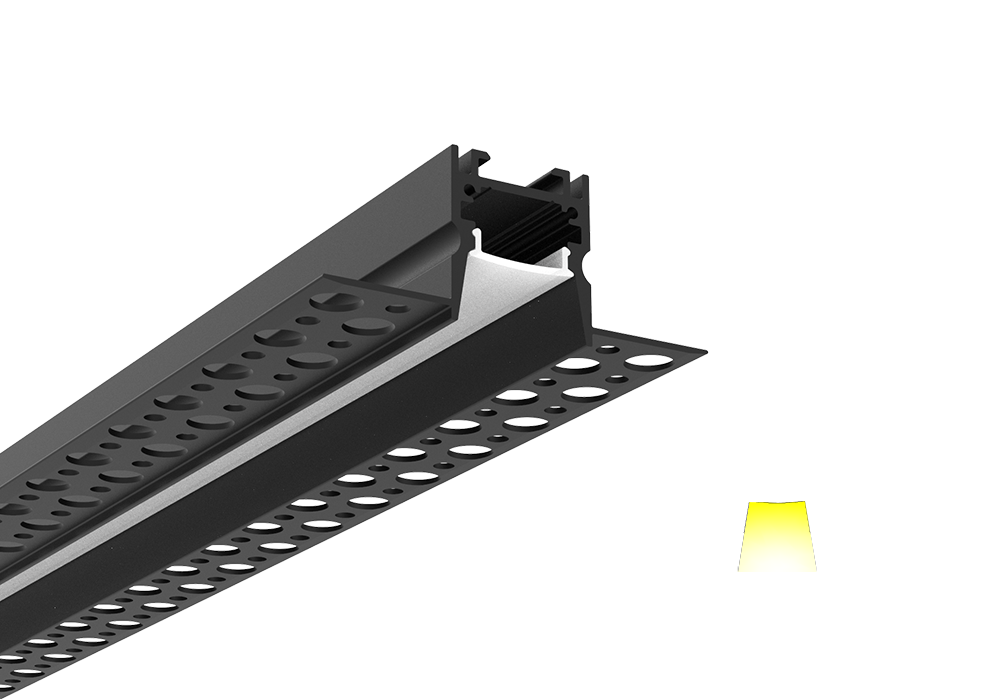

Black Recessed Channels For LED Strip Lighting With Anti-glare Design

LED Strip lighting with anti-glare design and offer you healthy ambient lighting in residential and business

Basic parameters

Model:
ALP177
Material:
Extruded Aluminum{6063-T5)
Size:
63×26.2mm
Diffuser:

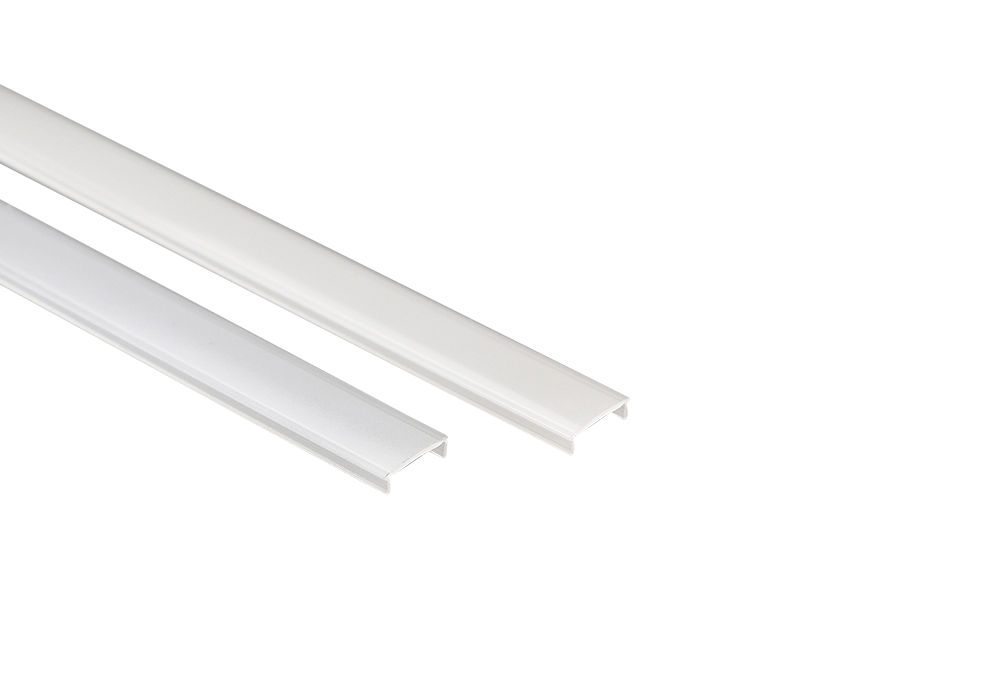

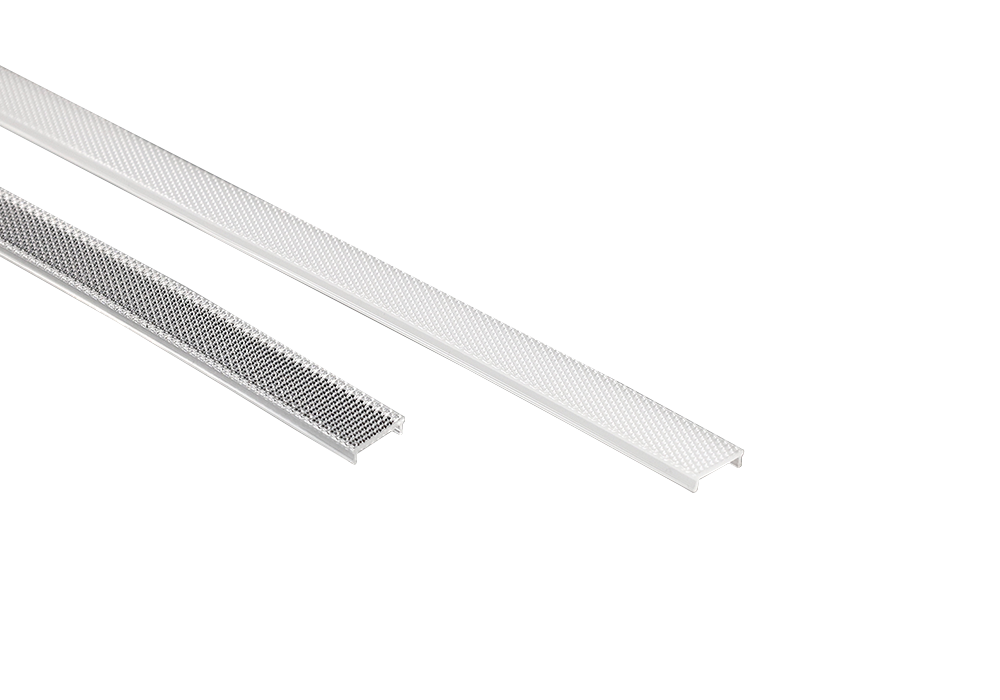

PC diffused cover / Prismatic cover
Installation:
Recessed
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Max Power: 18W/m
Max LED Strip Width: 12mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
