ALP205

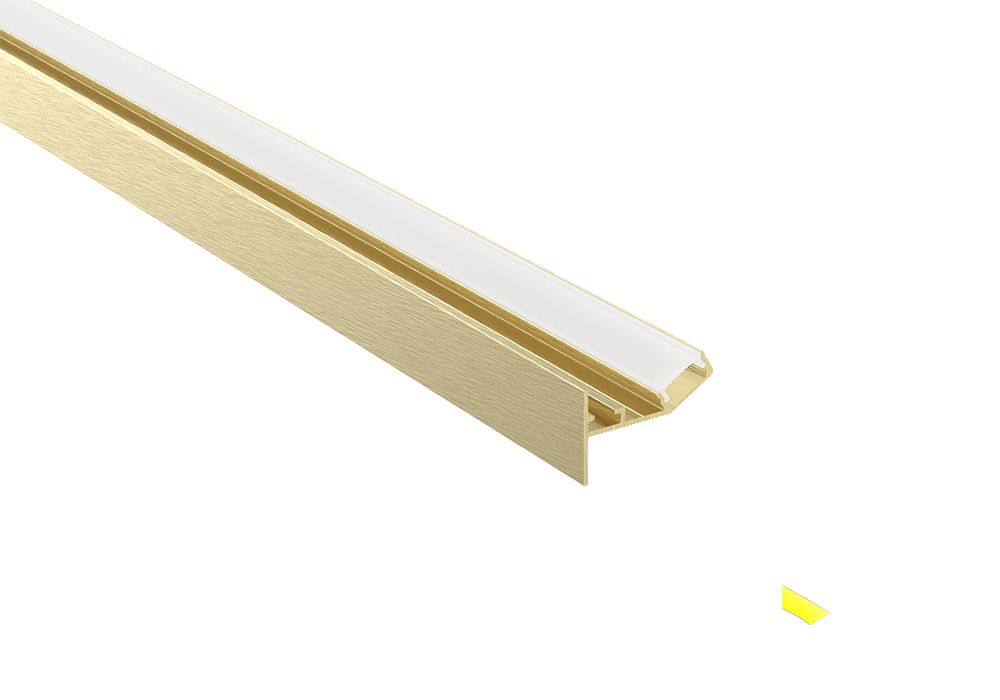

30 Degrees Lighting Golden Aluminum LED Profiles for Cove Light for Drywall

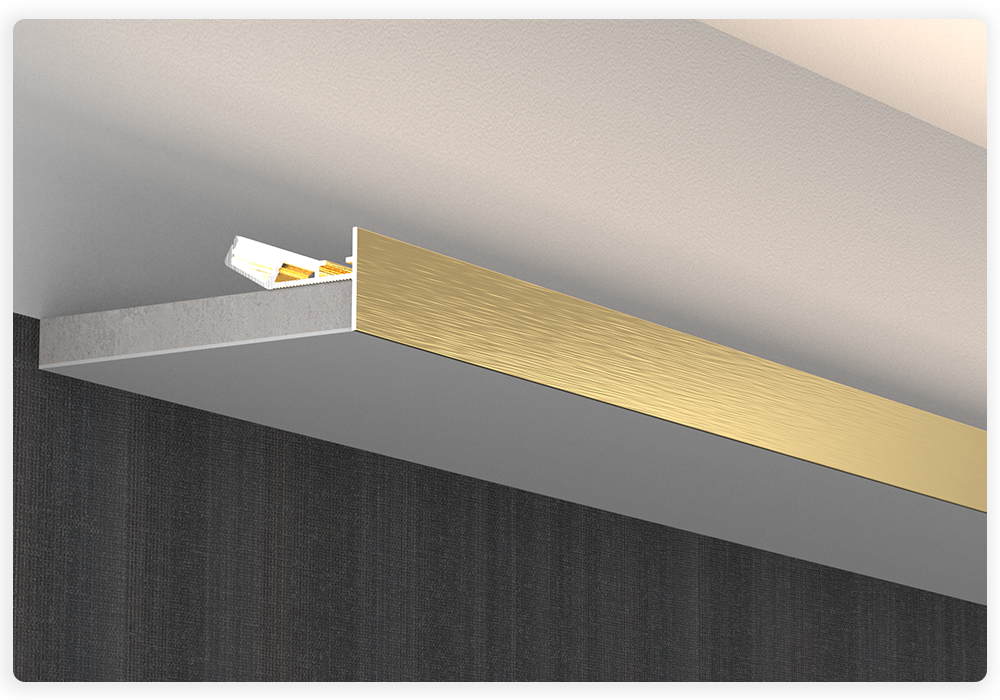

Cove led profiles for 12.5mm drywall with Indirect lighting

Basic parameters

Model:
ALP205
Material:
Extruded Aluminum{6063-T5)
Size:
40.25×26mm
Diffuser:

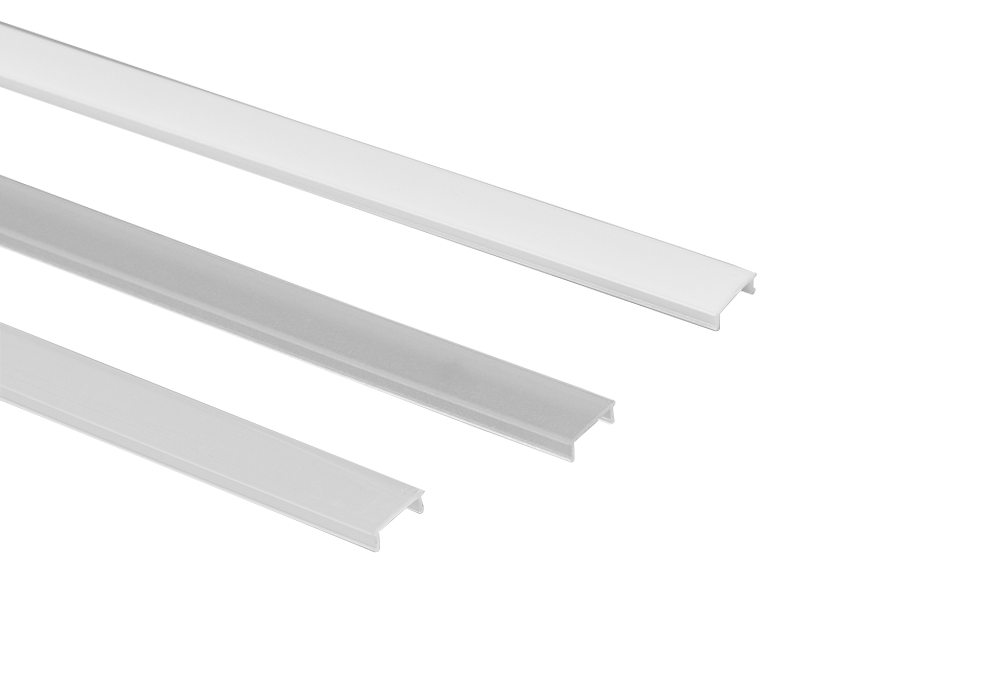

PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover /PC diffused cover
Installation:
Silver / Black anodized , Powder coated white / black or other colors
Finish:
Recessed

Optical Parameter

Max Power: 14W/m
Max LED Strip Width: 12mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
