ALP100

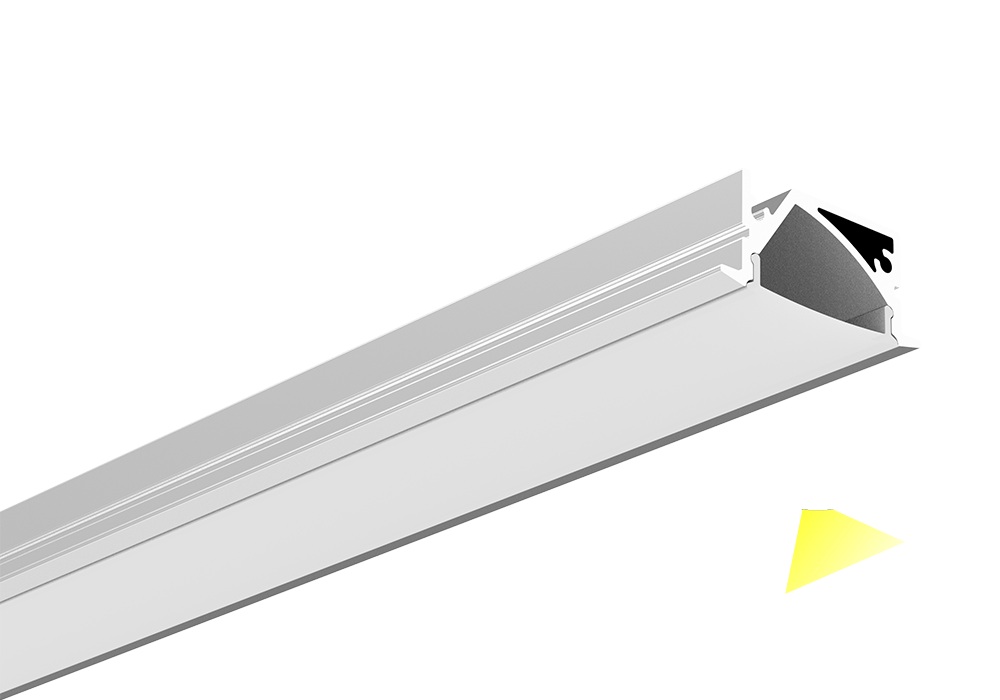

Recessed Aluminum Profile for Cabinet with spring clip

Recessed LED aluminum channel with trim and spring clip for cabinets and furniture

Basic parameters

Model:
ALP100
Material:
Extruded Aluminum{6063-T5)
Size:
29.5×13.4mm
Diffuser:

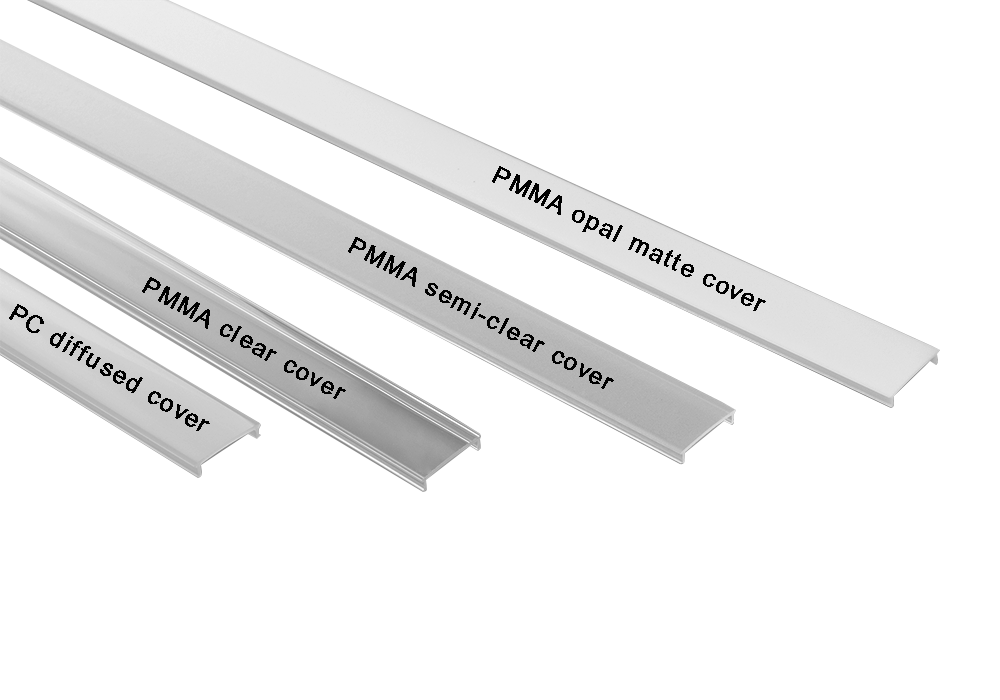

PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover / PC diffused cover
Installation:
Recessed
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Max Power: 15W/m
Max LED Strip Width: 8mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
