ALP010

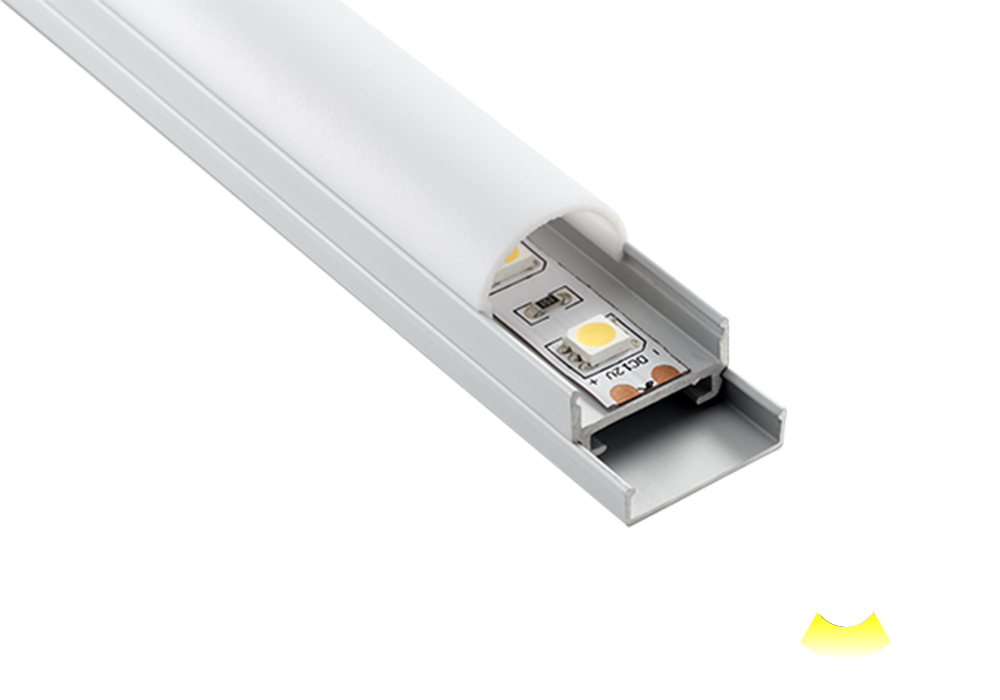

20mm LED Aluminum Profile with round Cover

20*20mm surface mounting LED extrusion with round diffuser

Basic parameters

Model:
ALP010
Material:
Extruded Aluminum{6063-T5)
Size:
19.6×20.1mm
Diffuser:

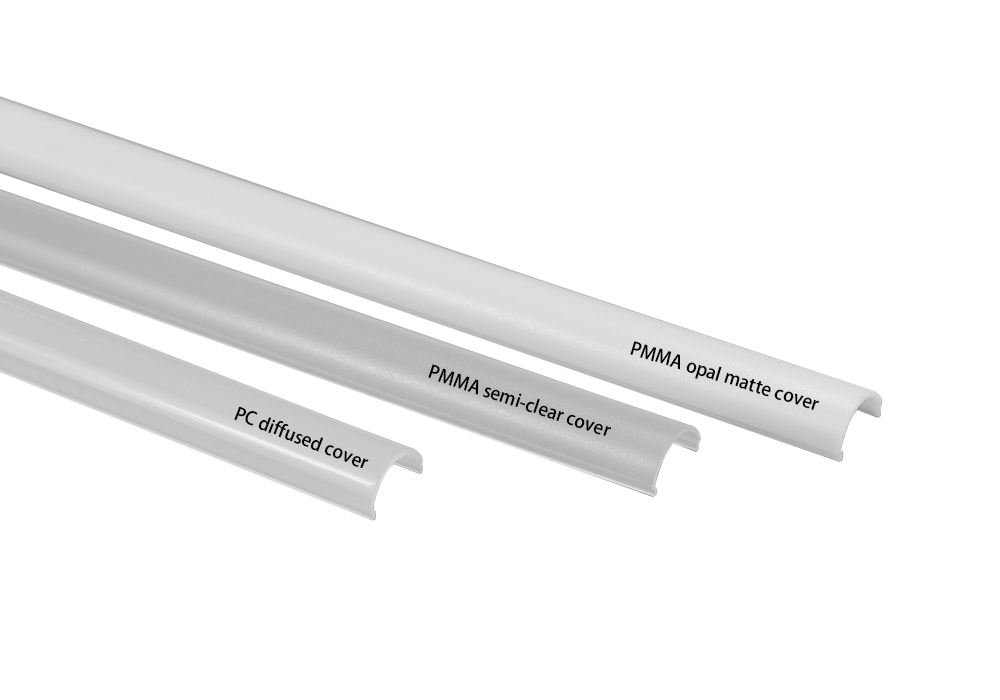

PMMA opal matte cover / PMMA semi-clear cover / PC diffused cove
Installation:
Surface
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Colour: 2700K/3000K/4000K
Max Power: 15W/m
Max LED Strip Width: 16mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
