ALP004-R

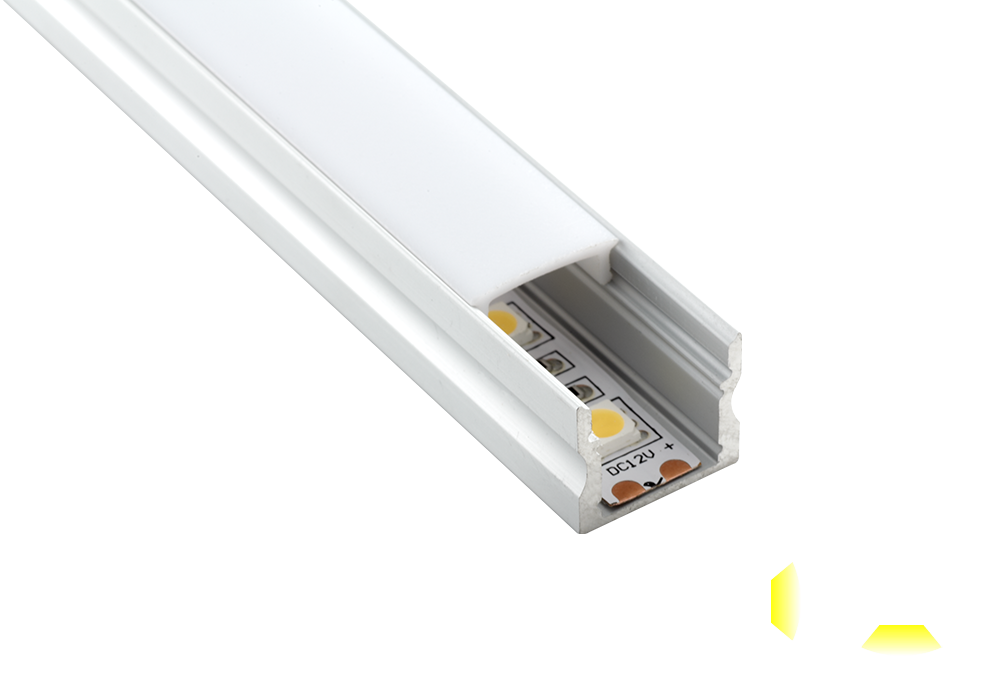

15MM Surface LED Channel

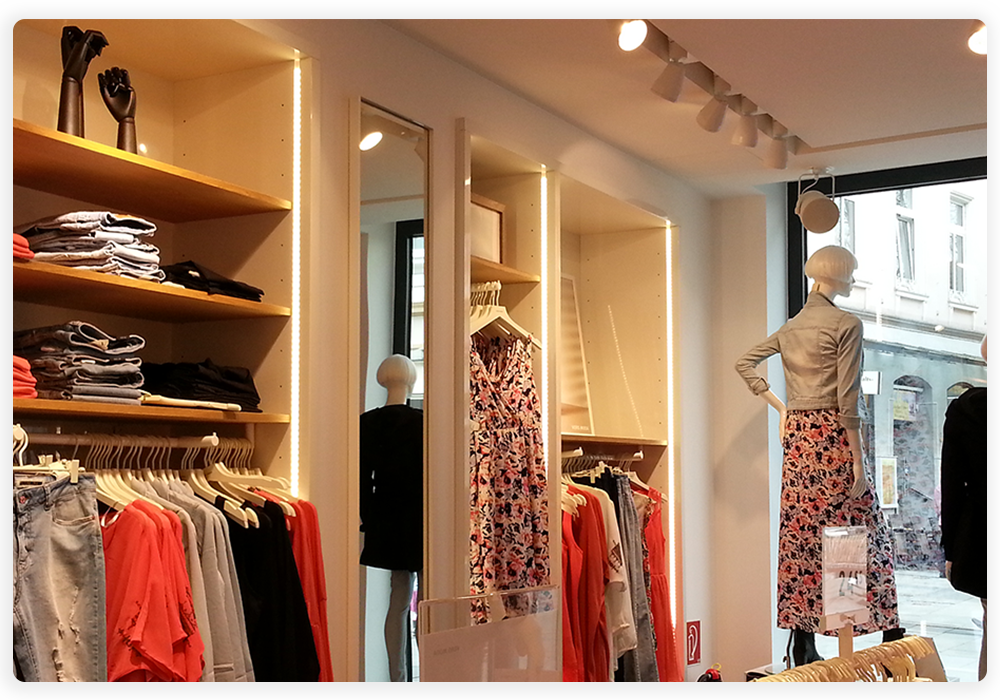

Surface Aluminum LED Profile With PC/PMMA Cover For Shelf Lighting

Basic parameters

Model:
ALP004-R
Material:
Extruded Aluminum{6063-T5)
Size:
23.2×15.3mm
Diffuser:

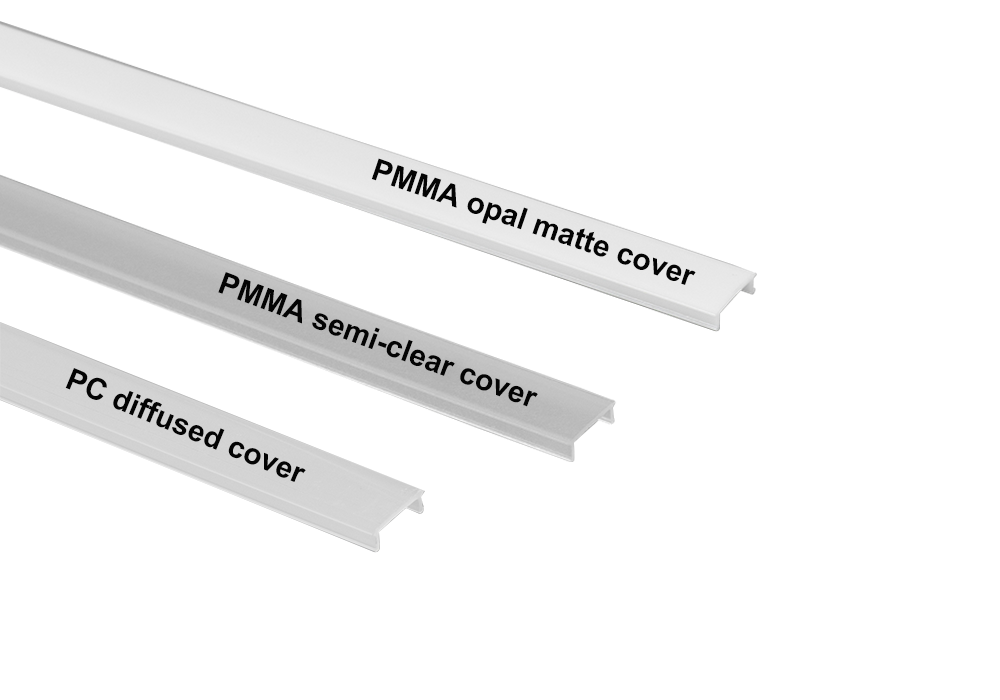

PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover / PC diffused cover
Installation:
Surface / Recessed
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Max Power: 15W/m
Max LED Strip Width: 12mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
